Google Business Mail DNS Record Setup

Note 1: Before starting: Setting up your Google email requires making DNS changes. These normally take between 15-4hrs to take effect however at the latest they can take upto 24hrs.


Note 2: You may already be past the first few steps. Feel free to scroll down to the sections relating to updating your TXT record or MX records.


When setting up your Google email, you will be asked how you want to verify your domain. First, go http://ozdns.com.au and check your domain's Nameservers. Make sure they start with ns1.digitalpacific.com.au or ns1.auserver.com.au. If they don't then these instructions may not be relevant to you and you will need to speak with your domain registrar to find out who hosts your domain.

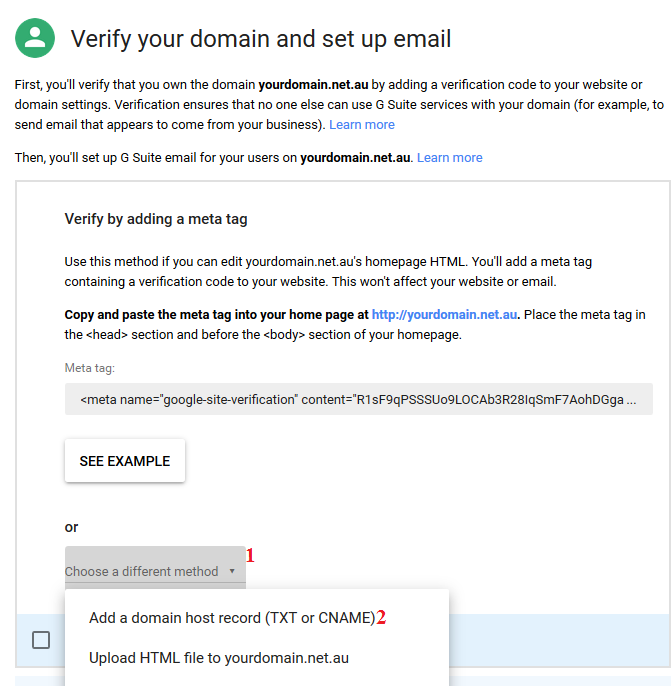

Step 1 - When you see the below screen, click (1) choose a different method then select (2)add a domain host record (TXT or CNAME).

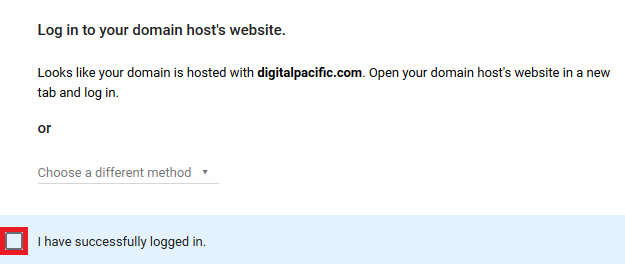

After you get the below screen, login to cPanel in a separate window (keep the Google setup window open), go back to the Google window and click on I have successfully logged in.

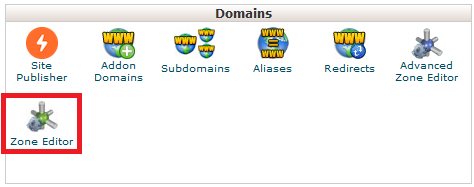

Step 2 - In cPanel click on the Zone Editor icon

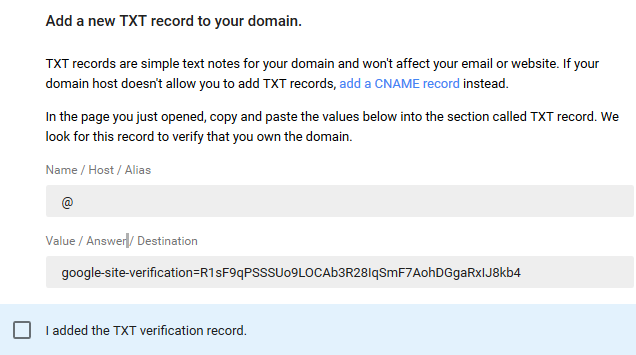

Back to the Google window, you will see instructions to add a TXT record

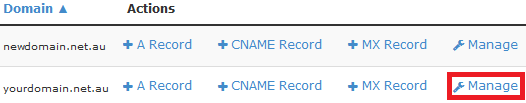

In the cPanel Zone Editor, click on Manage



ccec5e8792702558bbcdaa3924e5fd2c635246f2?t=5309a0aea6e8c9e27c41163c6c7eeb0c

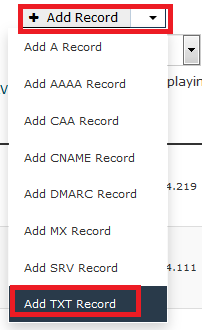

Click Add Record then Add TXT Record


0817c8e0cf0967fb52fc5a871790f2d32fafa21d?t=e64d0bf48232bfdaa6739bbb9015f59b



Add the TXT Data in and click Add Record. Note that the records can take between 15min and 4hrs to become live.


7c3613f0c9f6c8bde752120a91b6503fe5bcbb70?t=611e25ed0daa7676f3a665c1a597de75

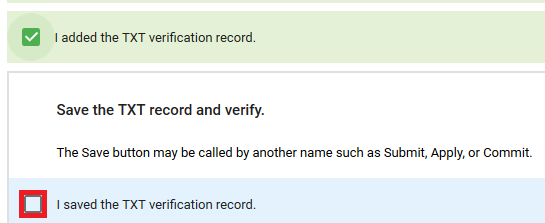

In the Google window, click I saved the TXT verification record.

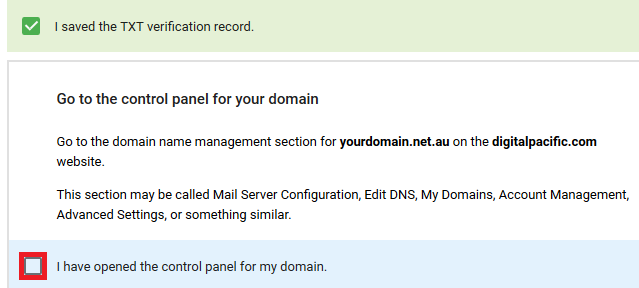

In this window, click I have opened the control panel for my domain.

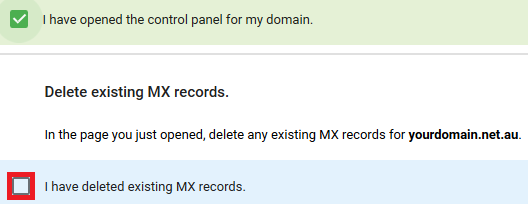

You will now see this screen

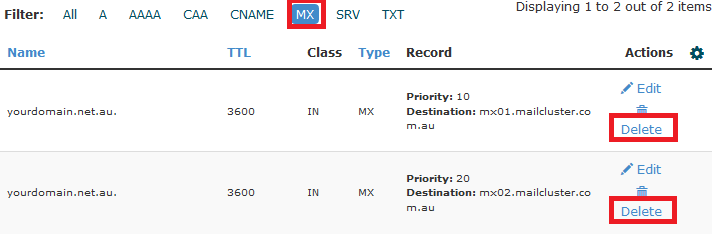

Go back to the cPanel page and click MX then Delete the current records

4579446e13ff00e0216c1936c97a4d75f12dfd16?t=8a15d2cb3a4c042e0a6d8656c3628376



Once that's done, click Domains,
6bd6ee7445aacae4302184acfb472a97a0e1667a?t=2dd94fed5a3a764e27d3ee9eb2cfc527

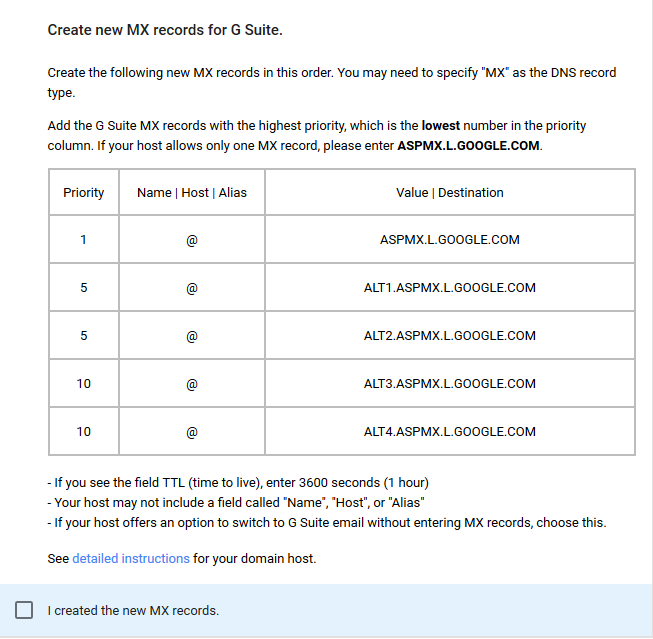

Now go back to the Google window and click I have deleted existing MX records. You will now see this screen.

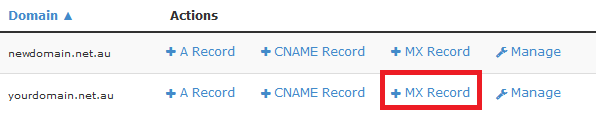

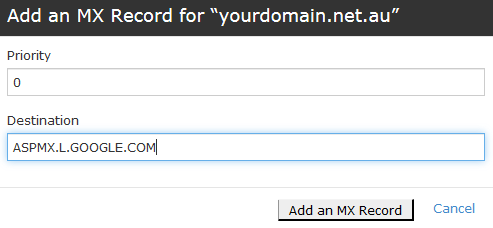

Go back into cPanel and add all the records, one at a time. You only need to worry about the Priority and Value | Destination


530b7f75989e9bfb2f1ca8f678ac33f63ca7aaac?t=94f9384cfcab3a5c7c75af1f1d666306



d832422f9a418fb66c64952cbbba197ad704a743?t=3c8cd5b4ceccbf04d4027e533e5d7c22

Values for G Suite MX records
Name/Host/AliasTime to Live (TTL*)Record TypePriorityValue/Answer/Destination
@ or leave blank3600MX1ASPMX.L.GOOGLE.COM.
@ or leave blank3600MX5ALT1.ASPMX.L.GOOGLE.COM.
@ or leave blank3600MX5ALT2.ASPMX.L.GOOGLE.COM.
@ or leave blank3600MX10ALT3.ASPMX.L.GOOGLE.COM.
@ or leave blank3600MX10ALT4.ASPMX.L.GOOGLE.COM.

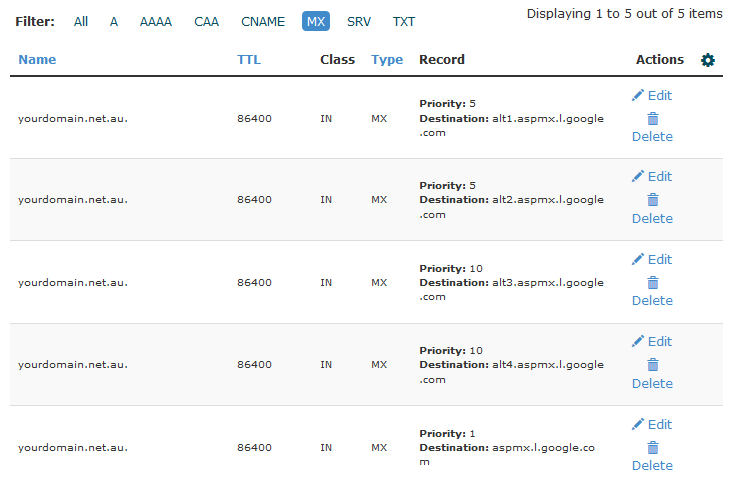

Once complete the records should look like this in the Manage section (the order doesn't matter as long as all records are there)


adeca234c77642536680d32545405e189a56b305?t=43b546f646e3cb77a68e1ba4d86ee1ef

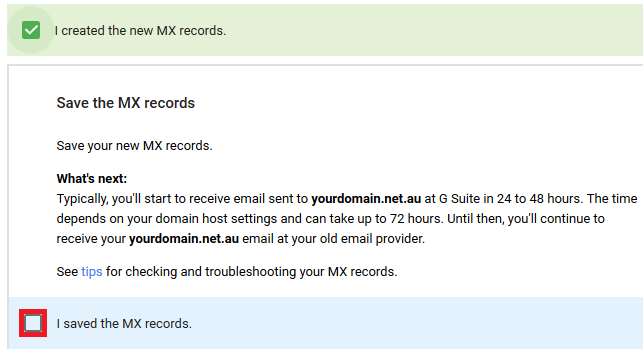

Go back to the Google window and click I created the new MX records. You will see this screen.

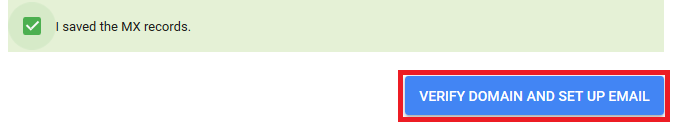

Now click I saved the MX records and in the following screen click VERIFY THE DOMAIN AND SETUP EMAIL.

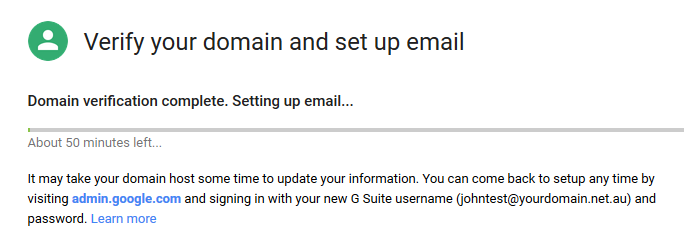

You will see this screen.







This screen just checks periodically if the MX records have propagated. You can also us http://ozdns.com.au and scroll down the MX record section to confirm if this has been complete.

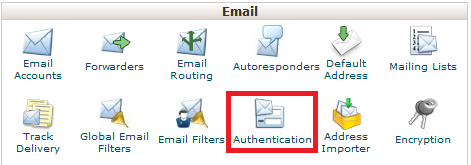

The last step is to add Google's SPF record. Go into the main cPanel screen and click on the Authentication icon.



16fa8ccebb2d5df08e6754c1d359490067533bf4?t=ec2fcbb993f53d1b46389518b5fcd8c8




Under Include List, click Add, add _spf.google.com and click OK



8f07778293a8b2e307eced68991b553e26f1ea86?t=e6859472e5a8392e3a423c38056754d4

Then just click update


4496cfad79659d1fff04325289486fc339940ebe?t=19670bb8d99355b593c3cbdca0f6e1f5
